Cable gland
- Material : UL Approved Nylon 6/6, 94V-2
- Protection : IP68
- Temp. Resistance : -30C to 80C; short time 140C.
- Suggested clearance hole for non-threaded mounting.

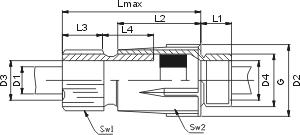

Specification Table:
| Model No. | Sealing Area D1 mm | D2 mm | D3 mm | D4 mm | Key size Sw1 | Key size Sw2 | L1 mm | L2 mm | L3 mm | L4 mm | L Max mm | Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PG7 | 3.5-6.5 | 16.5 | 7 | 7 | 15 | 13 | 8 | 13 | 5 | 8.5 | 23 | 100 |
| PG9 | 4.5-7 | 21.5 | 10.2 | 10.2 | 19 | 16 | 8 | 14 | 5 | 9 | 25 | 100 |
| PG11 | 5.5-10 | 25 | 11.3 | 11.5 | 22 | 19 | 8 | 15 | 5 | 10 | 27 | 100 |
| PG13.5 | 9-13 | 27 | 11.4 | 13.5 | 24 | 21 | 9 | 16 | 5 | 10.8 | 28 | 50 |
| PG16 | 10-14 | 30 | 15.8 | 16.5 | 27 | 23 | 10 | 16.5 | 5 | 12 | 30 | 20 |
| PG21 | 14-18 | 37.5 | 21.2 | 21 | 33 | 30 | 11 | 19 | 6 | 17 | 38 | 10 |
| PG29 | 18-25 | 47.5 | 30 | 27.5 | 42 | 40 | 11 | 20.5 | 7 | 18 | 42 | 5 |
| PG36 | 33-35 | 58 | 48 | 34.5 | 53 | 50 | 12 | 24 | 8 | 17 | 43 | 2 |
| PG42 | 30-38 | 65 | 44.5 | 40.5 | 60 | 55 | 13 | 27 | 9 | 18.5 | 48 | 2 |
| PG48 | 37-44 | 70 | 50 | 45.5 | 65 | 65 | 14 | 27 | 9 | 18.5 | 48 | 2 |
