Industry wire ducts
Industry wire ducts
- Material: Hardness PVC, Insulation, not autoignition, heat resistant available.
- Construction: Composed of bottom duct and cover cap, slot holes in both side.
- Usage: Fixed th ebottom duct first and put wires in duct then close the cover cap.
- Feature: Composed easily, not peel, smooth match and won't be hurt.

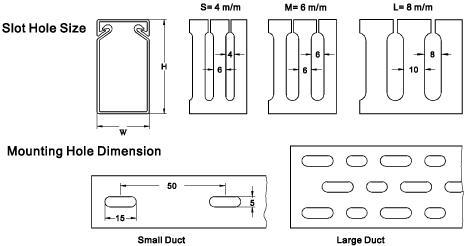

Specification Table:
| Model No. | W x H | Slot Hole Size | Wiring Volume | Std. Length |
| GW-1525S |
15x25 |
4 m/m |
5-12pcs |
1.7M&2.0M |
| GW-1525L |
15x25 |
8 m/m |
5-12pcs |
1.7M&2.0M |
| GW-2525S |
25x25 |
4 m/m |
10-25pcs |
1.7M&2.0M |
| GW-2525M |
25x25 |
6 m/m |
10-25pcs |
1.7M&2.0M |
| GW-2525L |
25x25 |
8 m/m |
10-25pcs |
1.7M&2.0M |
| GW-2545S |
25x45 |
4 m/m |
20-25pcs |
1.7M&2.0M |
| GW-2545M |
25x45 |
6 m/m |
20-25pcs |
1.7M&2.0M |
| GW-2545L |
25x45 |
8 m/m |
20-25pcs |
1.7M&2.0M |
| GW-3333S |
33x33 |
4 m/m |
25-45pcs |
1.7M&2.0M |
| GW-3333M |
33x33 |
6 m/m |
25-45pcs |
1.7M&2.0M |
| GW-3333L |
33x33 |
8 m/m |
25-45pcs |
1.7M&2.0M |
| GW-3345S |
33x45 |
4 m/m |
40-55pcs |
1.7M&2.0M |
| GW-3345M |
33x45 |
6 m/m |
40-55pcs |
1.7M&2.0M |
| GW-3345L |
33x45 |
8 m/m |
40-55pcs |
1.7M&2.0M |
| GW-4545S |
45x45 |
4 m/m |
60-70pcs |
1.7M&2.0M |
| GW-4545M |
45x45 |
6 m/m |
60-70pcs |
1.7M&2.0M |
| GW-4545L |
45x45 |
8 m/m |
60-70pcs |
1.7M&2.0M |
| GW-6545S |
65x45 |
4 m/m |
110-120pcs |
1.7M&2.0M |
| GW-6545M |
65x45 |
6 m/m |
110-120pcs |
1.7M&2.0M |
| GW-6545L |
65x45 |
8 m/m |
110-120pcs |
1.7M&2.0M |
| GW-2565S |
25x65 |
4 m/m |
40-45pcs |
1.7M&2.0M |
| GW-2565M |
25x65 |
6 m/m |
40-45pcs |
1.7M&2.0M |
| GW-2565L |
25x65 |
8 m/m |
40-45pcs |
1.7M&2.0M |
| GW-3365S |
33x65 |
4 m/m |
60-75pcs |
1.7M&2.0M |
| GW-3365M |
33x65 |
6 m/m |
60-75pcs |
1.7M&2.0M |
| GW-3365L |
33x65 |
8 m/m |
60-75pcs |
1.7M&2.0M |
| GW-4565S |
45x65 |
4 m/m |
110-120pcs |
1.7M&2.0M |
| GW-4565M |
45x65 |
6 m/m |
110-120pcs |
1.7M&2.0M |
| GW-4565L |
45x65 |
8 m/m |
110-120pcs |
1.7M&2.0M |
| GW-6565S |
65x65 |
4 m/m |
180-200pcs |
1.7M&2.0M |
| GW-6565M |
65x65 |
6 m/m |
180-200pcs |
1.7M&2.0M |
| GW-6565L |
65x65 |
8 m/m |
180-200pcs |
1.7M&2.0M |
| GW-7264L |
72x64 |
8 m/m |
200-220pcs |
1.7M&2.0M |
| GW-33100L |
33x100 |
8 m/m |
180-200pcs |
1.7M&2.0M |
| GW-48100L |
48x100 |
8 m/m |
215-250pcs |
1.7M&2.0M |
| GW-70100L |
70x100 |
8 m/m |
250-300pcs |
1.7M&2.0M |
| GW-100100L |
100x100 |
8 m/m |
300-400pcs |
1.7M&2.0M |
| GW-15075 |
150x75 |
- |
335-500pcs |
1.7M&2.0M |
