Screw Applied Low Profile
- Material : UL Approved Nylon6/6, 94V-2
- Designed to secure wire bundles in applications where space is limited.
Specification Table:

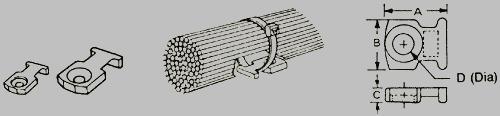

| Model No. | Pcs/Bag | Mounting Method | Dimension A mm(inches) | Dimension B mm(inches) | Dimension C mm(inches) | Dimension D mm(inches) |
|---|---|---|---|---|---|---|
| SM-5C | 100pcs/bag | #5 Screw | 10.2(.40) | 8.1(.32) | 2.5(.10) | 3.5(.138) |
| SM-8C | 100pcs/bag | #8 Screw | 18.9(.744) | 12.7(.50) | 3.0(.12) | 4.4(.173) |
| SM-5 | 1000pcs/bag | #5 Screw | 10.2(.40) | 8.1(.32) | 2.5(.10) | 3.5(.138) |
| SM-8 | 1000pcs/bag | #8 Screw | 18.9(.744) | 12.7(.50) | 3.0(.12) | 4.4(.173) |
